polymorphic_list_mod Module Reference

Linked lists based on the module link_mod.f90. More...

Data Types
type	list

Functions/Subroutines
subroutine	printlist (this)
subroutine	addvalue (this, value, pDeallocator)
	Appends a new value to the end of the linked list. Current value is unaffected. More...
logical function	list_any_no_params (this, proc)
logical function	list_any_one_param (this, proc, par1)
logical function	list_contains (this, value)
	Returns true if the given value points to the same target as some value in the list. More...
type(list) function	copylist (this)
subroutine	appendlist (this, newList)
	Appends a new list to the linked list. Current values are unaffected. More...
subroutine	mergelist (this, addList)
	Appends the second list's values to the first one without repetitions. More...
subroutine	list_swap_indices (this, index1, index2)
	Swaps the values stored in he links at the given indices. More...
subroutine	rotate_list_left (this)
	Moves the first element of the given list to the end of the list. More...
class(*) function, pointer	firstvalue (this)
	Returns a pointer to the first value in the linked list. More...
class(*) function, pointer	currentvalue (this)
	Returns a pointer to the value in the link to which the list iterator currently points. More...
subroutine	next (this)
	Moves the list iterator to the next link in the list. More...
logical function	morevalues (this)
	Returns true if the pointer to a link is associated, and false otherwise. More...
subroutine	reset (this)
	Resets link iterator to point at the first link in the list. More...
integer function	list_index (this, value)
type(link) function, pointer	list_link_at_index (this, index)
class(*) function, pointer	list_value_at_index (this, index)
subroutine	removecurrentvalue (this)
	Removes the current value from the list. The pointer is set to the previous element in the list. If the prevoius element does not exit, the pointer is set to the next element. More...
subroutine	dissolvelist (this)
	Deallocates the list's links without deallocating its values. More...
subroutine	purgecurrentvalue (this)
	Removes the current value from the list and deallocates its contents. The pointer is set to the previous element in the list. If the prevoius element does not exit, the pointer is set to the next element. More...
type(list) function, pointer	list_from_polymorphic (x)
	Converts a polymorpihc pointer to a list pointer if possible, else returns a null-pointer. More...
subroutine	deallocate_list (pList)
	Deallocates all values in the list. More...
subroutine	deallocate_list_native (this)
integer function	list_len (this)
subroutine	sortlistbykey (someList, pKey)
	Sorts values in the list. More...
logical function	sortkey (x1, x2)
	Dummy key for soriting. Always returns true. More...
logical function	integerkey (x1, x2)
	Key for sorting integers. Returns true if x1 is less than x2. More...
recursive subroutine	sortpreparedlistbykey (someList, pKey)
	Helper process for sortListByKey. More...
recursive subroutine	listcatenationwithsorting (list1, list2, newList, pKey)
	Helper process for sortPreparedListByKey. More...

Detailed Description

Linked lists based on the module link_mod.f90.

Author

Mark Leair, PGI Compiler Engineer

Note

I don't understand how the subroutine sortListByKey works. It would be helpful to have a description.

Function/Subroutine Documentation

addvalue()

subroutine polymorphic_list_mod::addvalue	(	class(list)	this,
		class(*), pointer	value,
		procedure(deallocatorprocedure), intent(in), optional, pointer	pDeallocator
	)

Appends a new value to the end of the linked list. Current value is unaffected.

Here is the call graph for this function:

appendlist()

subroutine polymorphic_list_mod::appendlist	(	class(list)	this,
		type(list)	newList
	)

Appends a new list to the linked list. Current values are unaffected.

copylist()

type(list) function polymorphic_list_mod::copylist

(

class(list)

this

)

Here is the call graph for this function:

currentvalue()

class(*) function, pointer polymorphic_list_mod::currentvalue

(

class(list)

this

)

Returns a pointer to the value in the link to which the list iterator currently points.

Here is the call graph for this function:

deallocate_list()

subroutine polymorphic_list_mod::deallocate_list

(

class(*), intent(inout), pointer

pList

)

Deallocates all values in the list.

deallocate_list_native()

subroutine polymorphic_list_mod::deallocate_list_native

(

type(list), intent(inout)

this

)

dissolvelist()

subroutine polymorphic_list_mod::dissolvelist

(

class(list)

this

)

Deallocates the list's links without deallocating its values.

firstvalue()

class(*) function, pointer polymorphic_list_mod::firstvalue

(

class(list)

this

)

Returns a pointer to the first value in the linked list.

Here is the call graph for this function:

integerkey()

logical function polymorphic_list_mod::integerkey	(	class(*), pointer	x1,
		class(*), pointer	x2
	)

Key for sorting integers. Returns true if x1 is less than x2.

Here is the call graph for this function:

list_any_no_params()

logical function polymorphic_list_mod::list_any_no_params	(	class(list)	this,
		procedure(logical_fn_no_params), intent(in), pointer	proc
	)

Here is the call graph for this function:

list_any_one_param()

logical function polymorphic_list_mod::list_any_one_param	(	class(list)	this,
		procedure(logical_fn_one_param), intent(in), pointer	proc,
		class(*), intent(in), pointer	par1
	)

Here is the call graph for this function:

list_contains()

logical function polymorphic_list_mod::list_contains	(	class(list)	this,
		class(*), intent(in), pointer	value
	)

Returns true if the given value points to the same target as some value in the list.

list_from_polymorphic()

type(list) function, pointer polymorphic_list_mod::list_from_polymorphic

(

class(*), intent(in), pointer

x

)

Converts a polymorpihc pointer to a list pointer if possible, else returns a null-pointer.

list_index()

integer function polymorphic_list_mod::list_index	(	class(list)	this,
		class(*), pointer	value
	)

list_len()

integer function polymorphic_list_mod::list_len

(

class(list)

this

)

Here is the call graph for this function:

list_link_at_index()

type(link) function, pointer polymorphic_list_mod::list_link_at_index	(	class(list)	this,
		integer, intent(in)	index
	)

Here is the call graph for this function:

list_swap_indices()

subroutine polymorphic_list_mod::list_swap_indices	(	class(list)	this,
		integer, intent(in)	index1,
		integer, intent(in)	index2
	)

Swaps the values stored in he links at the given indices.

list_value_at_index()

class(*) function, pointer polymorphic_list_mod::list_value_at_index	(	class(list)	this,
			index
	)

Here is the call graph for this function:

listcatenationwithsorting()

recursive subroutine polymorphic_list_mod::listcatenationwithsorting	(	type(list), intent(in)	list1,
		type(list), intent(in)	list2,
		type(list), intent(inout)	newList,
		procedure(sortkey), pointer	pKey
	)

Helper process for sortPreparedListByKey.

Here is the call graph for this function:

mergelist()

subroutine polymorphic_list_mod::mergelist	(	class(list)	this,
		type(list)	addList
	)

Appends the second list's values to the first one without repetitions.

morevalues()

logical function polymorphic_list_mod::morevalues

(

class(list)

this

)

Returns true if the pointer to a link is associated, and false otherwise.

Todo:

Rename moreValues to isEndOfList.

Here is the call graph for this function:

next()

subroutine polymorphic_list_mod::next

(

class(list)

this

)

Moves the list iterator to the next link in the list.

printlist()

subroutine polymorphic_list_mod::printlist

(

class(list)

this

)

purgecurrentvalue()

subroutine polymorphic_list_mod::purgecurrentvalue

(

class(list)

this

)

Removes the current value from the list and deallocates its contents. The pointer is set to the previous element in the list. If the prevoius element does not exit, the pointer is set to the next element.

removecurrentvalue()

subroutine polymorphic_list_mod::removecurrentvalue

(

class(list)

this

)

Removes the current value from the list. The pointer is set to the previous element in the list. If the prevoius element does not exit, the pointer is set to the next element.

Attention

The removed element is not deallocated, so it continues to take up space in the RAM.

reset()

subroutine polymorphic_list_mod::reset

(

class(list)

this

)

Resets link iterator to point at the first link in the list.

rotate_list_left()

subroutine polymorphic_list_mod::rotate_list_left

(

class(list)

this

)

Moves the first element of the given list to the end of the list.

sortkey()

logical function polymorphic_list_mod::sortkey	(	class(*), pointer	x1,
		class(*), pointer	x2
	)

Dummy key for soriting. Always returns true.

Here is the call graph for this function:

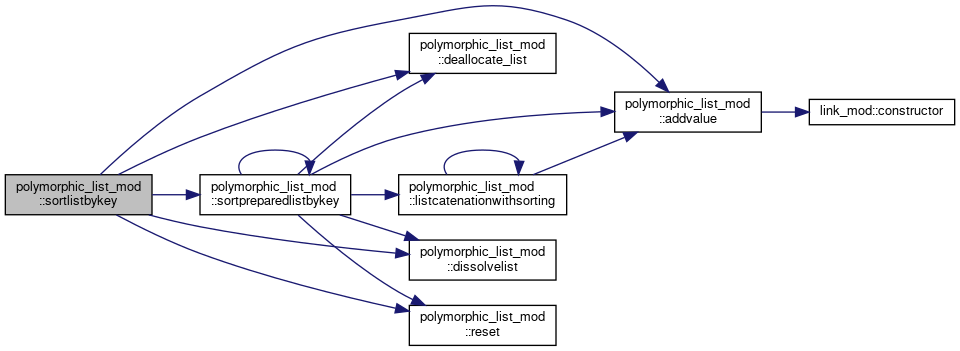

sortlistbykey()

subroutine polymorphic_list_mod::sortlistbykey	(	type(list), intent(inout)	someList,
		procedure(sortkey), pointer	pKey
	)

Sorts values in the list.

Parameters

pKey	points to a logical function. When the funtions returns true, the links stay in the same order, and exchange otherwise.

Here is the call graph for this function:

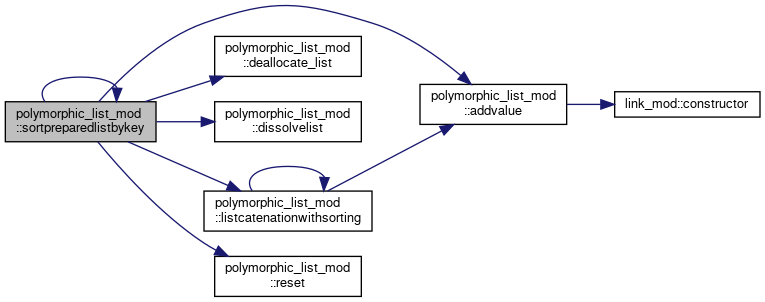

sortpreparedlistbykey()

recursive subroutine polymorphic_list_mod::sortpreparedlistbykey	(	type(list), intent(inout)	someList,
		procedure(sortkey), pointer	pKey
	)

Helper process for sortListByKey.

Here is the call graph for this function:
